Kevlar edge Corrugator Belt Used for Automatic Corrugated Cardboard Line

BRAND: YIKE GROUP
TYPE: YKC; YKK
Product Description

1. Features

● 200mm kevlar edge

● Composition of cotton, synthetic and IFDY

● High moisture absorption and release; Low noise and high speed

● Woven structure, anti-skidding


2. Introduction

Corrugator belt also named Corrugated board conveyor belt.

Corrugator belt is for corrugated board production line and developed specifically for Double Facer. Corrugator belts consistently keep the fastest absorption & release of moisture, which secures high quality cardboards with less consumption of heat and energy, and higher speed is assured. Corrugator belt have been specially developed for the transport of board and optimization of the drying process ,they resist the stress continuously and achieve as long a life as possible.

Kevlar edge Corrugator Belt Used for Automatic Corrugated Cardboard Line

3.Technical Specifications:

Type

YKC-Common edge

YKK-Kevlar edge

Thickness

(9±0.30)mm

Width

(1600-2800)mm

Heat-resistance

240ºC

240℃ (Kevlar Edge part up to) 350℃

Tensile strength

75Mpa

Coefficient of friction

≥0.4u

Weight per unit

(7.5 ± 0.3)kg/m2

Air-permeability

2.2m3/m2min.


4. Products Features

Tensile strength

Warp direction (63-75) Mpa in dry mode

Heat resistance

Raw materials are polyester synthetic fiber, softening point≥260ºC

Moisture absorption

Quick absorption and emission of heat, therefore cardboard can be quickly dried

Seams

Belt seam part is fabricated with imported steel fasteners and filled with rubber, flat surface, heat- resistance, fastness and non-marking

Suitability

Suitable for BHS, JS, TCY, CHAMPION, YIKE GROUP, FOSBER corrugators, various cardboards and some particular operation mode.

Geometrical dimension

Steady belt dimension, high weaving density, low stretching and contraction and good contact between belt surface and cardboard.

Service life

As long as the same products imported abroad.

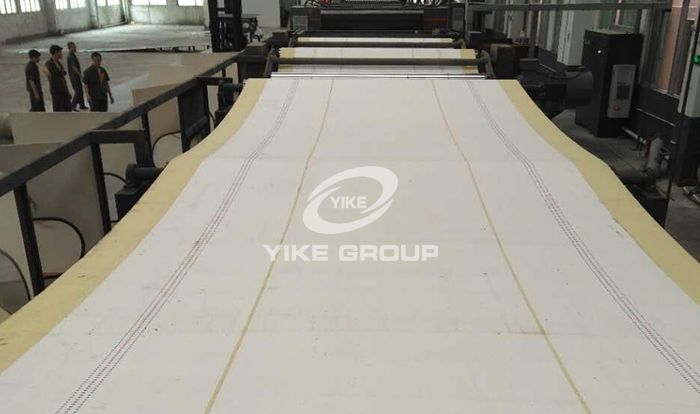

KEVLAR EDGE WOVEN TYPE CORRUGATOR BELTS PHOTO

Woven type corrugator belts

COMMON EDGE WOVEN TYPE CORRUGATOR BELTS PHOTO

Woven type corrugator belts
