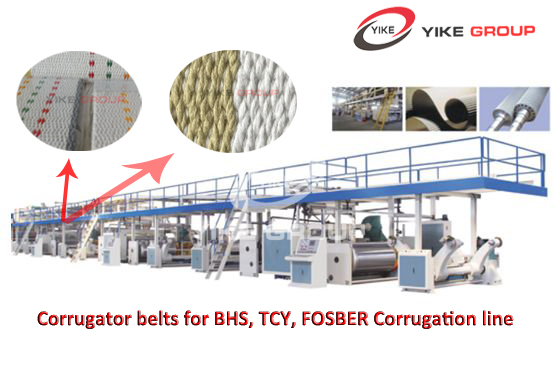

Woven type Corrugator Belts For Corrugation Line

BRAND: YIKE GROUP
SIZE: 1400-2800MM
Product Description


I: Introduction

Common edge woven type Corrugator belt also named Corrugated board conveyor belt.

Common edge Corrugator belt is for Lower speed of corrugated board production line.


II: Corrugator Belt Seam

1: USA Fastener clipper With Rubber

2: Hot Jaw Lacing


III: Technical Specifications:


Type

YKC-Common edge


Thickness

(9±0.30)mm

Width

(1600-2800)mm

Heat-resistance

240℃


Tensile strength

75Mpa

Coefficient of friction

≥0.4u

Weight per unit

(7.5 ± 0.3)kg/m2

Air-permeability

2.2m3/m2min.



IV: Products Features

Tensile strength

Warp direction (63-75) Mpa in dry mode

Heat resistance

Raw materials are polyester synthetic fiber, softening point≥260ºC

Moisture absorption

Quick absorption and emission of heat, therefore cardboard can be quickly dried

Seams

Belt seam part is fabricated with imported steel fasteners and filled with rubber, flat surface, heat- resistance, fastness and non-marking

Suitability

Suitable for BHS, JS, TCY, CHAMPION, YIKE GROUP, FOSBER corrugators, various cardboards and some particular operation mode.

Geometrical dimension

Steady belt dimension, high weaving density, low stretching and contraction and good contact between belt surface and cardboard.

Service life

As long as the same products imported abroad.

Woven type Corrugator Belts For Corrugation Line

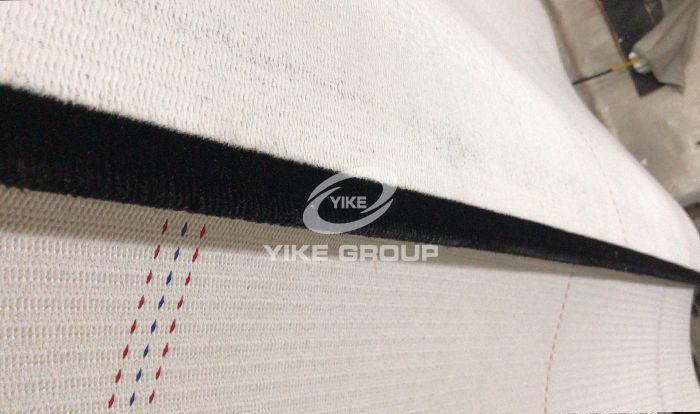

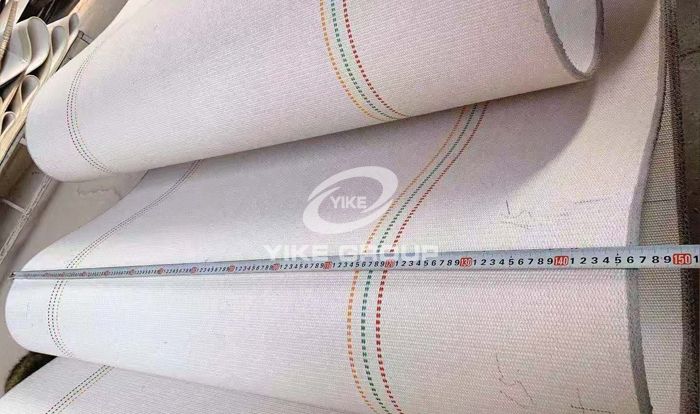

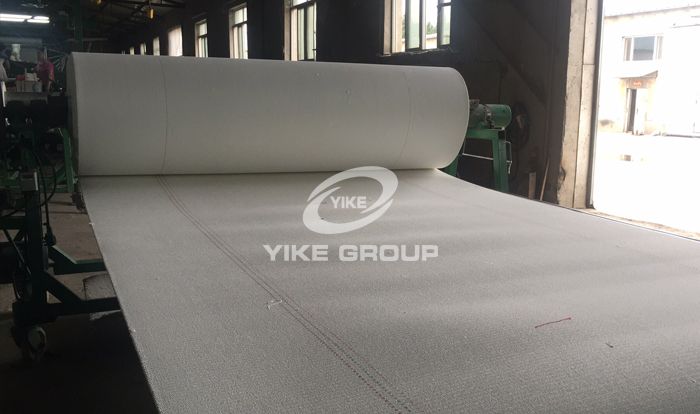

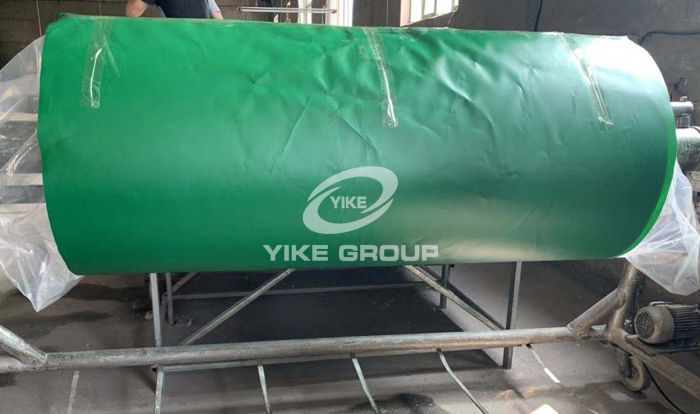

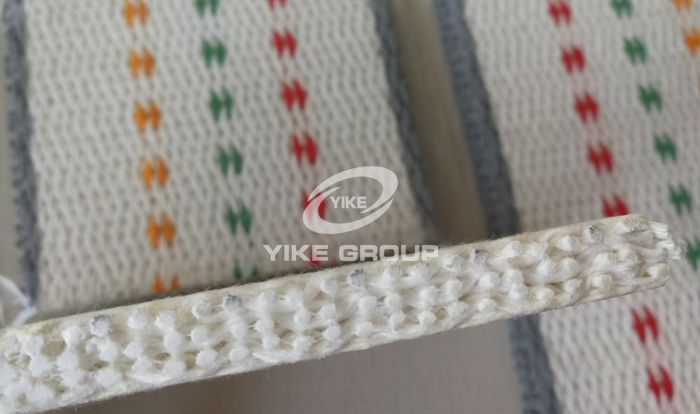

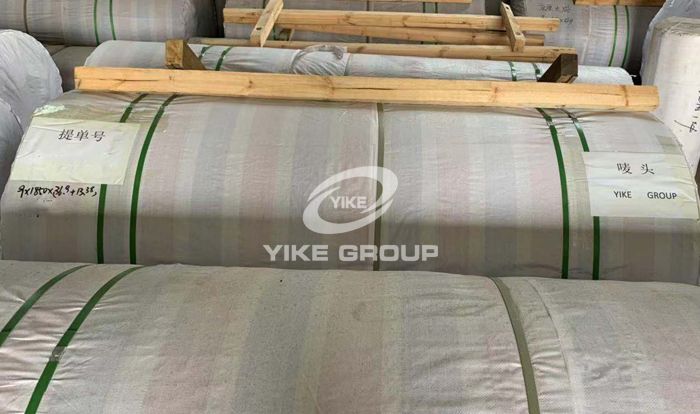

V: BELT PHOTOS SHOW

Common Edge Corrugator Belts For Corrugation Line

Common Edge Corrugator Belts For Corrugation Line

Common Edge Corrugator Belts For Corrugation Line
