Woven Type Corrugated Belts YIKE GROUP

Features

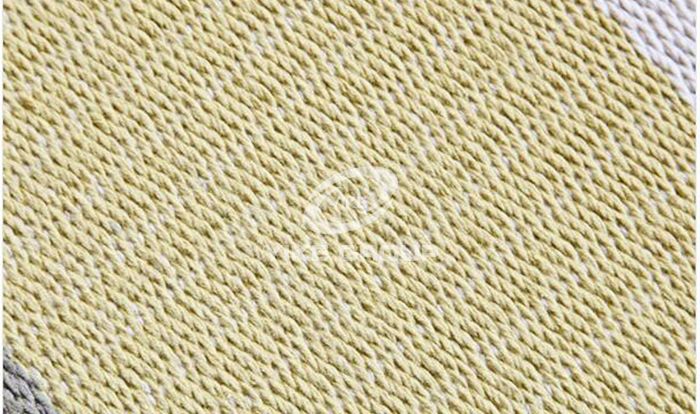

● 5-layer woven fabric

● Composition of cotton, synthetic and IFDY

● High moisture absorption and release; Low noise and high speed

● Woven structure, anti-skidding

Introduction

Corrugator belt also named Corrugated board conveyor belt.

Corrugator belt is for corrugated board production line and developed specifically for Double Facer. Corrugator belts consistently keep the fastest absorption & release of moisture, which secures high quality cardboards with less consumption of heat and energy, and higher speed is assured. Corrugator belt have been specially developed for the transport of board and optimization of the drying process ,they resist the stress continuously and achieve as long a life as possible.

Type

Normal High speed corrugator belt & High speed corrugator belt with Kevlar edge

YK-K --- Reinforced Edges Kevlar armored on both edges

-----------------------------------------------------------

● Width: 1400-3200mm

● Speed: 100-300m/min

● Kevlar edge: 100-200mm

● Suitable for: Top and Bottom Belt

● Change cardboards width frequently , or hotter plates.

YK-C--- High Speed Corrugator Belt

-----------------------------------------------------------

● Fast absorb & release moisture, durable.

● Universal application.

Specification

-----------------------------------------------------------

Application

-----------------------------------------------------------

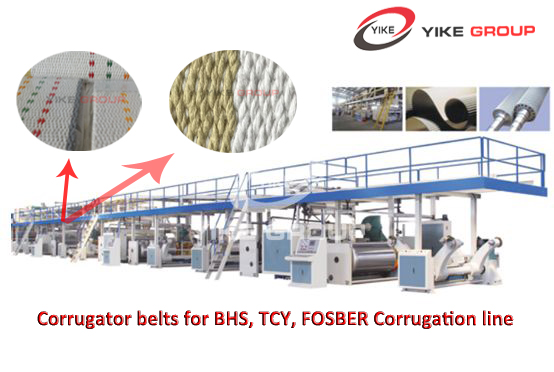

Used for 2/3/5/7 ply Automatic corrugated cardboard production line, packaging industry. If you want to see more information about CORRUGATOR BELT, please here. It will provide more details about corrugator belt.

Accessories

-----------------------------------------------------------

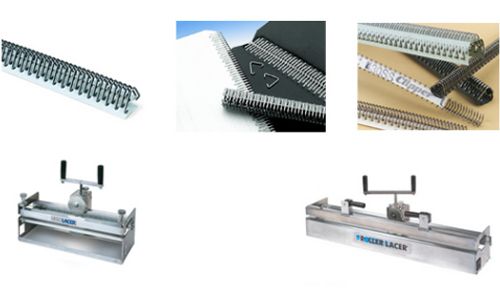

Roller Lacer, Fasteners and After sales service for Corrugator belts lacing

Roller Lacers Available in width:

12’’ (300mm) 24’’ (600mm)  36” (900mm)48” (1200mm)  60” (1500mm)

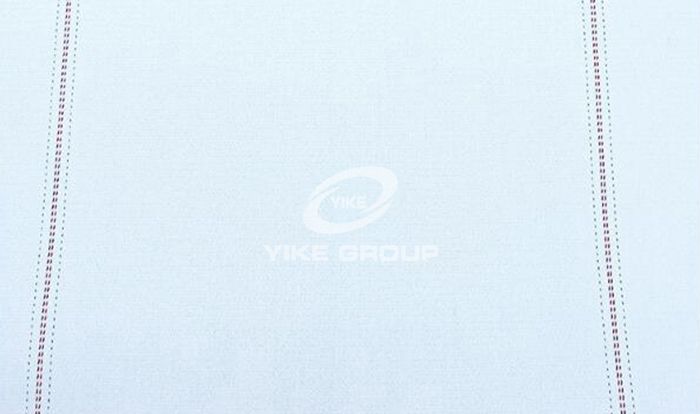

COMMON EDGE WOVEN TYPE CORRUGATED BELTS

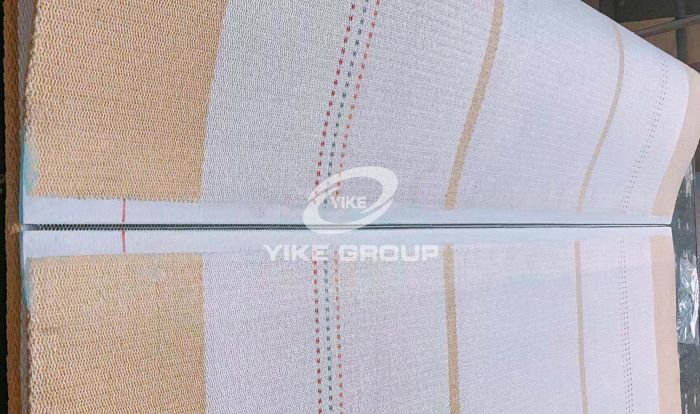

KEVLAR EDGE 200MM CORRUGAROR BELTS
