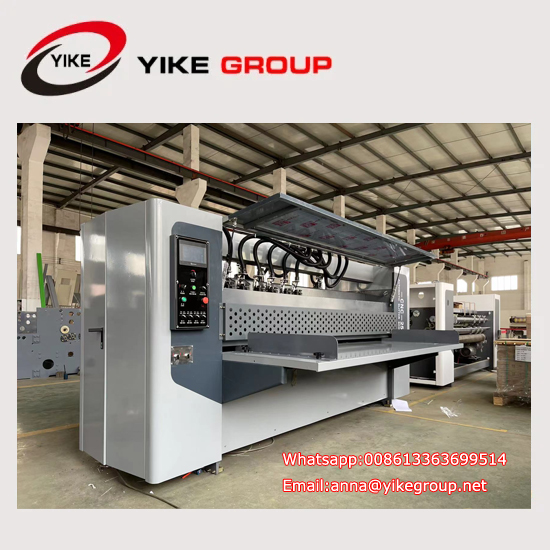

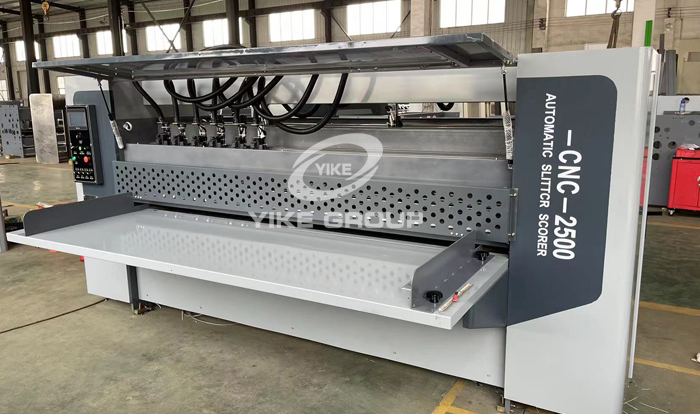

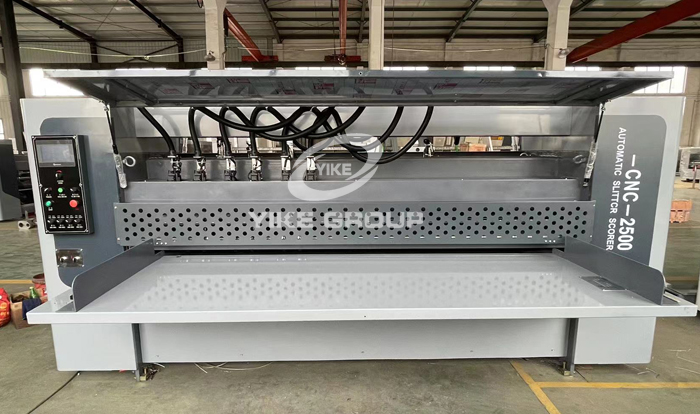

Introduction of Automatic thin blade slitter scorer machine

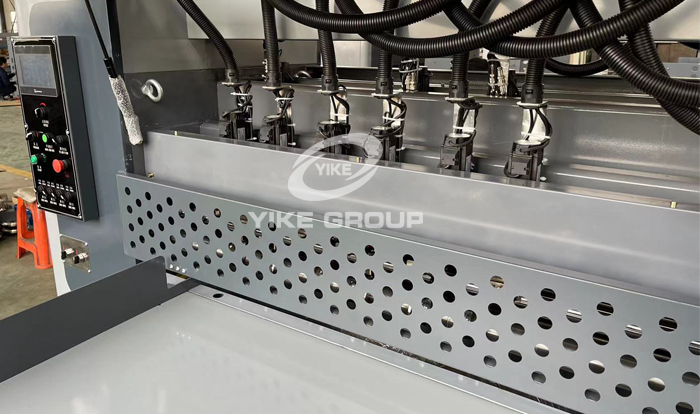

Human machine interface —PLC control, The system for robot operating system more humanized, simple structure, easy to maintain.
ü Manual/auto feeder is available
ü Pre pressing roller,slitting blade and scorer holder are auto adjusted
ü Grinding knife is auto/manual
ü Cardboard thickness and press power are auto adjusted
ü Jog for fine-adjusted
ü Auto counter
ü Slitting and press line precision ±0.5mm Auto slitter scorer
ü Human machine interface —PLC control，cutter paper thin blade change order use stand alone stepper motor control,auto change order speed 1-20S,error precision±0.5 mm.
ü Operation humanized.，no technical content，worker use operation use easy。

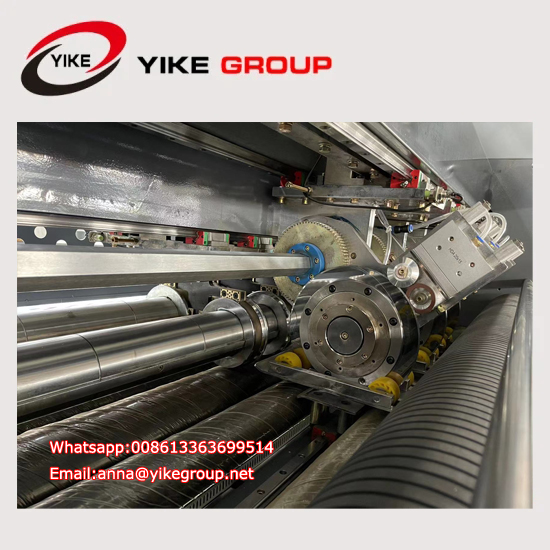

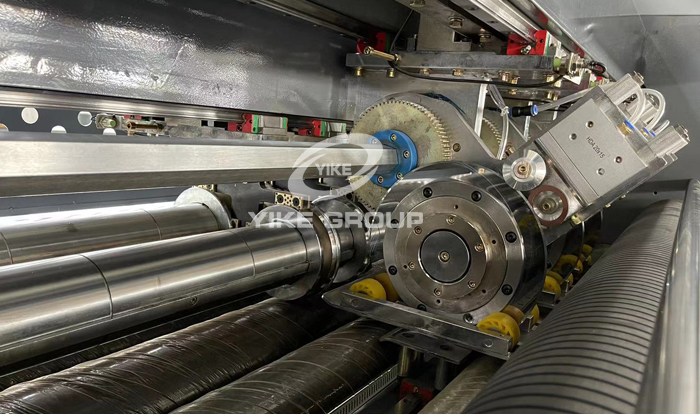

ü Slitting part:Adopt high quality tungsten steel thin blade,sharp and long work life,slice more tidy,non-pressing and non-burr.
ü Pre pressing roller,slitting blade and scorer holder are auto lifting
ü This machine can memory 999 group order，don’t need stop machine can change order and manual change order.
Specification:
Model | YK-CNC-2500 | YK-CNC-3100 | ||
No.s of slitting scoring | 4/6 5/8 6/10 | |||
Max.production speed | 180m/min | 180m/min | 180m/min | 180m/min |
Max.feeding width | The Max.slitting between the two blades:2250mm | 2750mm The Max.slitting between the two blades:2750mm | ||
Max.slitting width | 2500mm | 3100mm | ||
Min.slitting width | 200mm | 200mm | ||
Min.feeding length | 200mm |
200mm | ||
Min.scoring distance | 40*135mm | 40*135mm | ||
Gap adjustment | Manual | Manual | ||
Main motor power | 10kw | 12kw | ||
Dimensions L*W*H | 1570*3450*1500mm | 1570*3950*1500mm | ||
Weight | 2780kg | 2980kg | ||
MANUAL FEEDER + THIN BLADE SLITTER SCORER MACHINE
