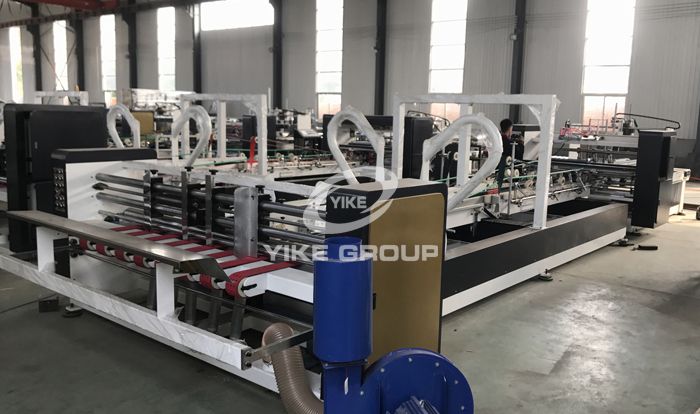

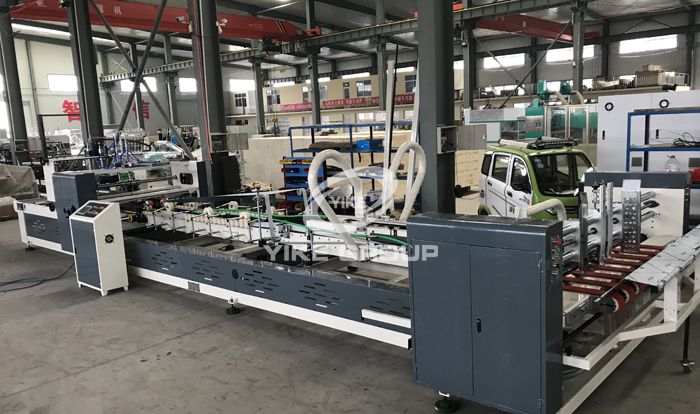

Automatic Folder Gluer Machine for Small Box

BRAND: YIKE GROUP
TYPE: YKS-2400, YKS-2800
Product Description

Feature:

● Delta system

● High speed for small box


Introduction:

Computer type automatic glue machine is consist of three parts, which is paper feeding part, gluing and folding part and counting and stacking part. Automatic Computer adjustment paper feeding / fold and glue. Automatic counting and stacking output. The speed can reach 150-200 pieces per minute. Advanced and reasonable structure design and manufacture, it demands for cultural level of operators is not high, and operators will be able to handle all operating procedures in one or two working days, and protect the safety of operating personnel. Delta touch scree, PLC, Inverter, China Famous Brand bearings.


Specification:


Model
YK-ZXJ 2800
Max. Cardboard1200*2400mm
Mini. Cardboard170*500mm
Diemensions15500×3000×1600mm
Power required12 kw
Speed
150-200 Pcs/min
Voltage220V/380V/415V



Parts:

NAME

BRAND

COUNTRY

Touch screen

Delta

Taiwan

PLC

Delta

Taiwan

Inverter

Delta

Taiwan

Button

Siemens

Germany

Contactor

Siemens

Germany

Travel switch

Siemens

Germany

Relay

Schneider

French

Bearing

HRB

China

Belt

XIGELIN

Germany

Motor

CPG

Taiwan
