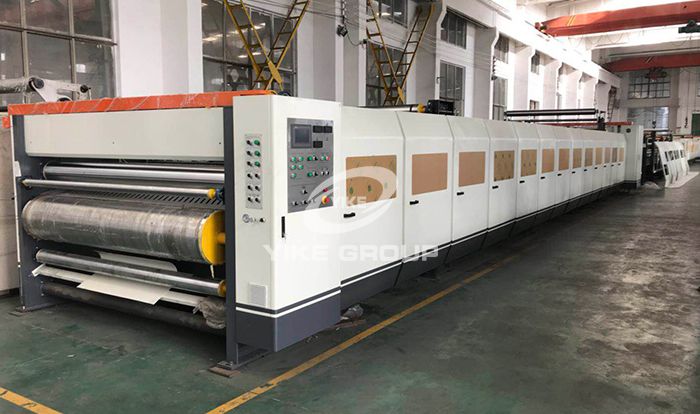

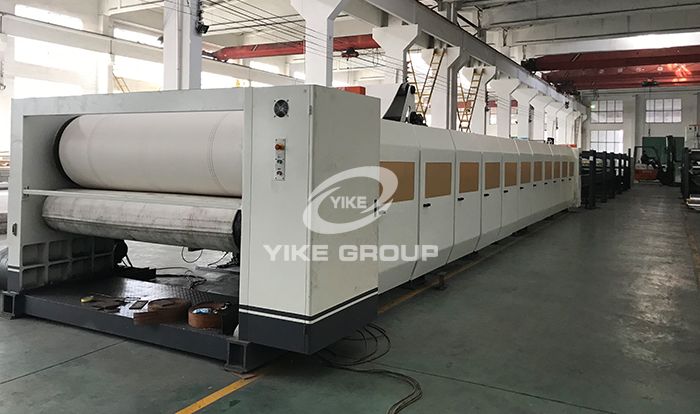

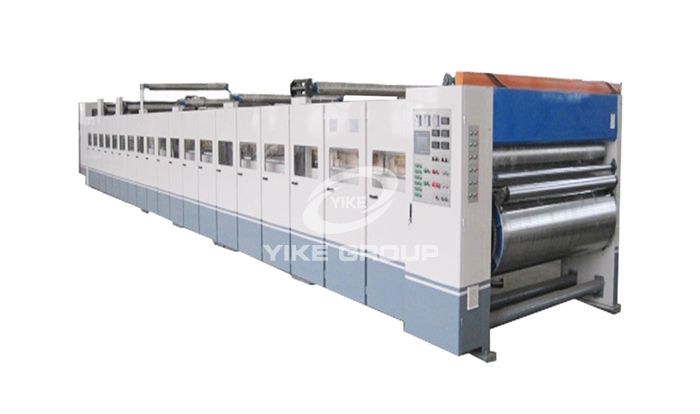

Double Facer

Product Description

Technical Parameters:

1. MAX effective width:2200mm

2. Operation direction:left or right(determined in accordance with customer’s factory building)

3. MAX machinery speed:250m/min

4. Temperature range:160—180℃

5. Steam Pressure:0.8-1.3Mpa

6. Air source pressure: 0.6—0.9Mpa

7. Quantity of heat plate:20 pieces Cooling stereotypes length:5m

Roller Diameter Parameters:

1. Up drive rubber roller diameter:¢800mm bottom drive rubber roller diameter: ¢600mm outsourcing wear rubber

2. Former follower with roller diameter:¢215mm  After setting the driven belt rollers diameter :¢215mm

3. Pressure belt roller diameter:  ¢85mm  Shaping roller diameter:¢86mm

4. The up belt tension roller diameter:¢175mm  up belt detuning roller diameter:¢128mm

5. Lower belt tension roller diameter:¢210mm    lower belt support belt roller diameter:¢155mm

Note: All the roller surface after grinding are hard chrome plated.
